Reflection target
Confirm the required visible reflection level and whether one- or two-sided coating is needed.
Anti-Reflective Glass
Premium Anti-Reflective (AR) Glass Manufacturer & Supplier in China
North One Glass supplies AR98, AR94, UV75 and UV99 anti-reflective glass for displays, framing and project glazing. AR98 visible light transmission can reach up to 99% under the selected coating and test conditions. UV75 provides UV filtering up to 75%; UV99 provides 99% UV blocking. Substrate, size, processing and optical targets are reviewed together before quotation.
Material
High-grade low-iron float glass with double-sided magnetron sputtered vacuum optical coating
Size
2440mm / 1830mm
3300mm / 2140mm
3660mm / 2140mm
3300mm / 2250mm
3300mm / 2440mm
Customizable
MOQ
100 SQM
Delivery
10-20 Days
For a faster quote
Share size, thickness, quantity, application, edge processing, and drawings or photos if available.
Quick Specs
Visible Light Transmittance (VLT)
AR98: up to 99%
Surface Reflectivity
Less than 0.5% (Double-Sided Coating)
Scratch Resistance
5,000 steel-wool rubbing cycles without visible coating damage
Chemical Resistance
High resistance to acids and alkalis
Optical selection
Choose AR Glass by Optical Performance
Viewing environment
Share ambient lighting, display distance, and color-neutrality expectations.
Processing
Confirm thickness, size, edgework, holes, and tempering requirements before quotation.
Important limitations
- Performance figures depend on the glass substrate, coating configuration, angle, and test method.
- Coated surfaces require suitable handling, cleaning, and protective packaging.
Commercial Info
Supplier Name
NORTH ONE GLASS
Business Type
Manufacturer & Global Exporter
Factory Location
Shahe City, Xingtai, Hebei Province, China
Sales Email
info@northoneglass.com
Incoterms Supported
FOB, CIF, CFR, DDP, EXW
Payment Terms
T/T, L/C at sight
Lead Time
10 to 20 business days
B2B Product Profile
Materials
- High-grade low-iron float glass with double-sided magnetron sputtered vacuum optical coating
Commercial Info
MOQ: 100 SQM
Delivery: 10-20 Days
Packaging Types
- Custom heavy-duty end-cap wooden crates
- Steel-banded plywood cases with protective interleaving paper
Ships To
- Worldwide
- North America
- Europe
- Middle East
- Southeast Asia
- Australia
- South America
Applications
Museum display casesArt galleriesLuxury retail shopfrontsElectronic touch screensOutdoor digital kiosksPhotography reproduction
Application Cases

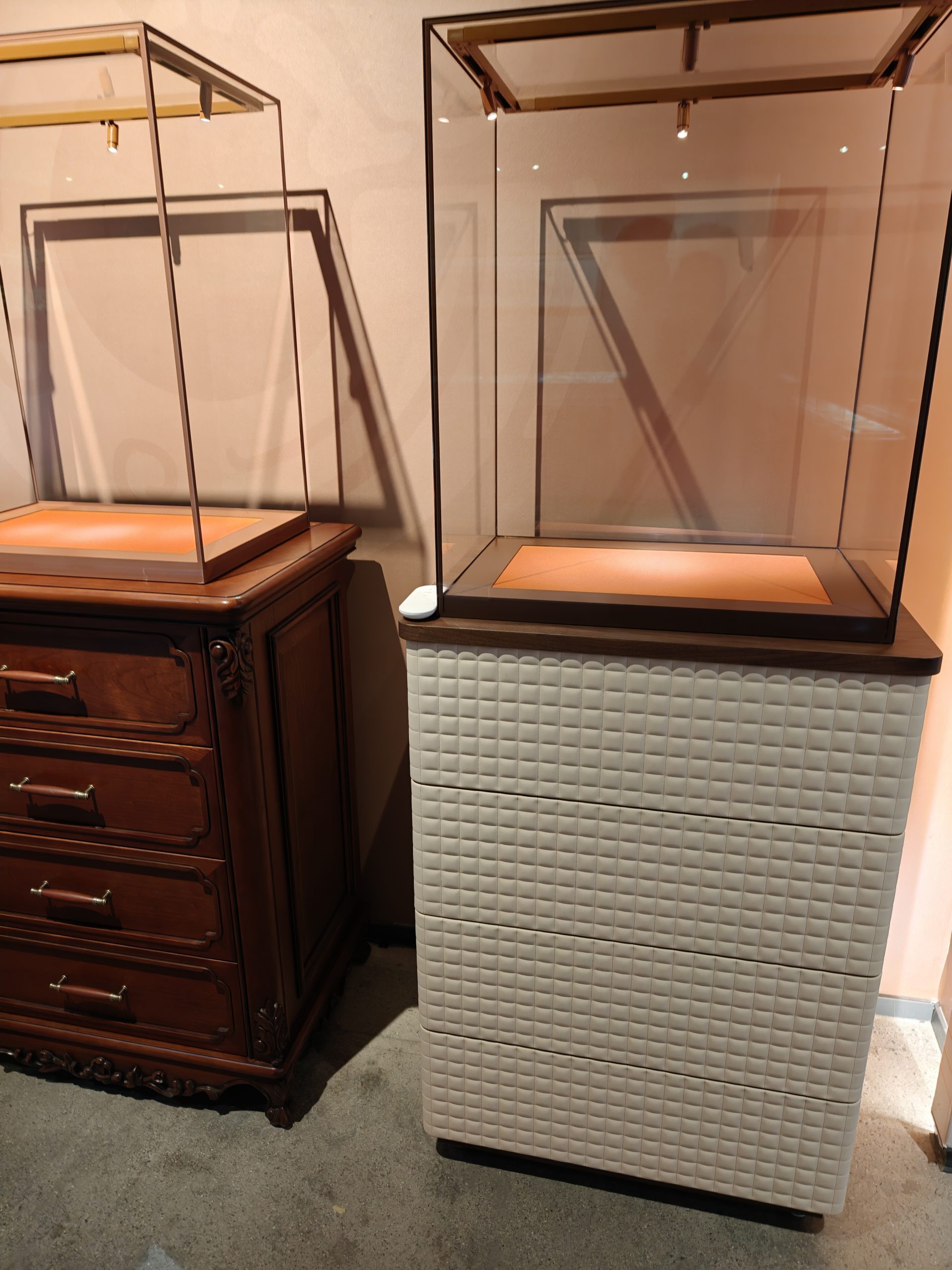

National Museum Artifact Showcase Project
Supplied UV99 laminated AR glass for high-value historical artifact display cabinets requiring <0.5% glare and 99% UV radiation block.
Flagship Luxury Boutique Storefront
Delivered jumbo size 3300*6000mm 12mm tempered AR glass for jewelry shopfront vitrines to maximize visual transparency.
International Fine Art Framing Wholesale
Provided bulk stock sheets of 2mm UV75 AR glass to framing distributors for anti-glare museum-quality framing.
Product Description
At NORTH ONE GLASS, we specialize in manufacturing and distributing high-performance optical glass solutions worldwide. As a premier anti-reflective (AR) glass supplier, we deliver industry-leading glass products engineered to eliminate glare, maximize light transmission, and preserve the true colors of your displays and exhibits. Whether you are looking to buy bulk wholesale raw sheets or require fully customized, tempered, or laminated deep-processed AR glass, our advanced dual-sided optical coating technology ensures unmatched durability and optical clarity. Technical Specifications & Superior Coating Durability: AR98 Visible Light Transmission (up to 99%, subject to coating and test conditions), Ultra-Low Reflectivity (reduces surface reflection to less than 0.5%), Extreme Chemical & Mechanical Resistance (5,000-cycle steel-wool rubbing test), Jumbo & Ultra-Large Capability (custom processing up to 3300mm * 16000mm), Advanced UV Protection (UV75 (up to 75% UV filtering) & UV99 (99% UV blocking)). Advanced Deep Processing & Delivery Capabilities: Tempered AR Glass, Laminated AR Glass, Precision CNC Processing (custom cutting, waterjet drilling, edging).
Compare AR98, AR94, UV75 and UV99
| Grade | Selection priority | What to confirm |
|---|---|---|
| AR98 | Visible light transmission up to 99% | Substrate, coating configuration, reflection target and test conditions |
| AR94 | Cost-effective AR glass for industrial and commercial displays | Required transmission, viewing conditions and sample performance |
| UV75 | Anti-reflective glass with UV filtering up to 75% | UV target, glazing construction and the applicable test report |
| UV99 | Anti-reflective glass with 99% UV blocking | UV target, glazing construction and the applicable test report |
AR98 visible light transmission up to 99% and UV99 ultraviolet blocking of 99% describe different optical measurements. Maximum size and processing depend on the selected grade, thickness and fabrication route.
Sample review and quotation
Send the application, optical target, thickness, finished dimensions, quantity, edge work, holes, tempering or lamination needs, destination and schedule. Request the relevant sample and test report before confirming the specification.
Full Specifications
| Visible Light Transmittance (VLT) | AR98: up to 99% |
|---|---|
| Surface Reflectivity | Less than 0.5% (Double-Sided Coating) |
| Scratch Resistance | 5,000 steel-wool rubbing cycles without visible coating damage |
| Chemical Resistance | High resistance to acids and alkalis |
| UV Protection Options | UV75: up to 75% UV filtering; UV99: 99% UV blocking |
| Available Thicknesses | 1.1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
| Max Jumbo Size | 3300mm x 16000mm (16 Meters) |
| Processing Capabilities | Tempering, Laminating (PVB/SGP), CNC Cutting, Edging, Waterjet Drilling |
Packaging & Shipping
Packaging Details
Sea-worthy heavy-duty timber crates reinforced with steel straps, moisture-proof wrapping, and foam cushioning to reduce handling and breakage risks during sea shipment.
Product Gallery
FAQ
What is anti-reflective (AR) glass and how does it work?
Anti-reflective (AR) glass is a high-tech optical glass coated with microscopic, dual-sided layers of metal oxides. These coatings use destructive interference principles to cancel out reflected light while maximizing light transmission through the glass pane, reducing glare to under 0.5%.
Can your anti-reflective glass block ultraviolet (UV) rays?
UV75 combines anti-reflective performance with UV filtering up to 75%, while UV99 provides 99% UV blocking. Separately, AR98 visible light transmission can reach up to 99%. Visible light transmission and UV blocking are different measurements. Specify the UV target and request the applicable sample or test report for the chosen configuration.
What thicknesses of anti-reflective glass can you supply?
We offer a comprehensive thickness range to suit all applications: 1.1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, and 12mm. Whether you need ultra-thin display-grade glass or thick structural safety glass, we have you covered.
What are your standard sheet sizes for AR glass?
Our standard factory stock dimensions include 18302440mm, 21403300mm, 21403660mm, 22503300mm, 24403300mm, 24403660mm, and 33004880mm. We also specialize in ultra-large jumbo sizes up to 330016000mm.
How scratch-resistant is the NORTH ONE GLASS AR coating?
The coating has been tested through 5,000 steel-wool rubbing cycles without visible coating damage. Request the applicable test method, conditions and report for the selected grade when assessing scratch resistance.
Is the coating resistant to acids, alkalis, and chemicals?
Yes. Our vacuum-sputtered hard coating is chemically stable and completely resistant to acids and alkalis. This ensures long-term optical performance even when cleaned frequently or exposed to varying environmental conditions in public showcases.
Can I order tempered or laminated anti-reflective glass directly from your factory?
Absolutely. As a premier deep-processing manufacturer, we supply fully tempered AR safety glass and laminated AR safety glass tailored to your specific architectural or security requirements.
Can NORTH ONE GLASS's AR glass be cut, edge-ground, and drilled after coating?
Yes! Our durable coating allows for full post-processing. You can perform precision cutting, custom CNC edge grinding, and waterjet hole drilling directly on the coated glass without risking any film edge-peeling or damage.
What is the price of anti-reflective glass, and how much does it cost?
The price of anti-reflective glass depends on the thickness, dimensions, processing type (such as laminating or tempering), and order volume. By sourcing directly from a China manufacturer like NORTH ONE GLASS, you eliminate middleman fees and optimize your costs. Contact our team with your specifications for a fast wholesale quote.
How does NORTH ONE GLASS help me save costs on custom projects?
Because we offer an exceptionally wide range of standard inventory sheet sizes, we can match your custom dimensions to the most efficient stock sheet. This drastically increases your cutting yield rate, cutting down material waste and saving you money.
How do you guarantee the safety of large glass shipments to prevent in-transit breakage?
We utilize customized, heavy-duty wooden crates with shock-absorbing interleaving materials between each sheet. Every shipment is fully reinforced inside the shipping container to eliminate movement, reducing movement and breakage risks during international transport.
Why should I source AR glass from NORTH ONE GLASS instead of original heavy manufacturers?
Sourcing from NORTH ONE GLASS offers three distinct advantages: much faster delivery times, flexible customization (including precision tempering, laminating, and custom shapes), and highly competitive pricing. We bridge the gap between heavy industrial raw production and your precise project needs.
Do you provide samples of your high-transmittance anti-reflective glass?
Yes, we provide standard-sized samples (e.g., A4 or customized small sizes) to qualified commercial buyers, allowing you to assess visible light transmission, coating durability and viewing performance under your project conditions before placing a bulk order.
After-Sales Service
100% Quality Guarantee. Immediate replacement or credit compensation for any manufacturing defects or shipping breakage verified upon container opening.
